APT-3 is designed for hydraulic shock control, protecting plumbing pipelines, valves, and appliances from damaging pressure surges (water hammer).
APT-3 has a total volume of 3 liters (0.8 gallons). The tank is designed for a maximum operating pressure of 10 bar (150 psi) and a maximum operating temperature of 90 °C (194 °F). It is factory pre-charged to 2 bar (30 psi) for stable system performance.
With a diameter of 14.0 cm and a height of 21.0 cm, the lightweight 1.03 kg design makes installation quick and convenient while saving space.
Product Overview
The APT-3 is a 3-liter (0.8 gallon) diaphragm pressure tank designed for hydraulic shock (water hammer) control and residential water booster systems, including frequency conversion (inverter) pumps. It stabilizes water pressure and reduces pump cycling.
APT-3 is ideal for regions with unstable or fluctuating municipal water pressure, widely used in homes and buildings where booster pumps are required. Its hygienic internal design, separate water from compressed gas and prevent water contact direct with the tank shell, ensures safe operation for cold sanitary water circuits, pressurized systems, and water storage applications.
Manufactured with premium materials and certified by NSF, CE, WaterMark, IAPMO, and other international bodies, APT-3 complies with global standards including those in the United States, Europe, Australia, and Asia. Produced in ISO-certified facilities, Aquasky pressure tanks delivers long service life, dependable performance, and safe drinking-water compatibility.
Certification

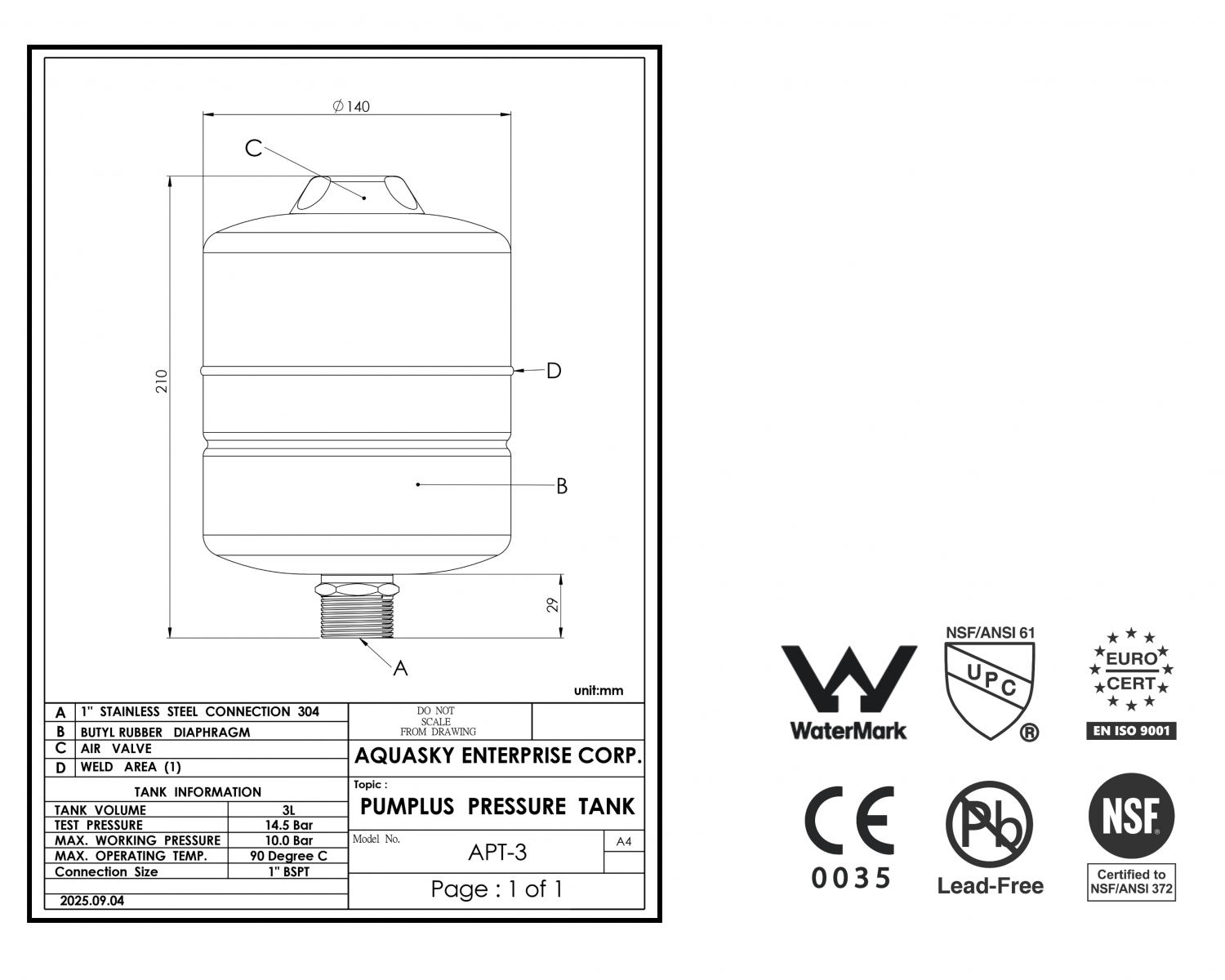

Specifications and Technical Data
| Parameter | Value |
| Model Number | APT-3 |
| Total Tank Volume | 3 liters / 0.8 gallons |
| Diameter | 14.0 cm / 5.5 inch |
| Height | 21.0 cm / 8.3 inch |
| Net Weight (NW) | 4.1 kg / 9.0 lbs. * |
| Gross Weight (GW) | 4.7 kg / 10.4 lbs. * |
| Shipping Volume | 0.81 CUF * |
| Operating Temperature | 1 - 90°C / 34 - 194°F |
| Factory Pre-charge | 2 bar | 30 psi |
| Max. Operating Pressure | 10 bar | 150 psi |
| Connection | 1” NPT / BSPT Stainless Steel |
| Liner Material | Polypropylene |
| Diaphragm Material | Butyl Rubber |
| Shell | Cold Rolled Carbon Steel |
| External Coating | Triple Grade Blue Paint |
| Pre-charge Gas | 100% Nitrogen |
* APT-3 is packed 4 pcs per box
Key Features & Design Advantages
How the Pumplus Pressure Tank Works
APT-3 stores supplemental water between the butyl rubber diaphragm and the polypropylene liner, while the nitrogen-filled air chamber maintains constant system pressure. When water demand occurs, the compressed nitrogen pushes water into the system at a controlled pressure.
This design ensures stable performance and supports reliable operation for showers, faucets, dishwashers, washing machines, and other fixtures.
Key benefits
Typical Applications
Frequently Asked Question (FAQ)
A: Yes. The APT-3 (3-liter / 0.8-gallon) pressure tank is specially designed for hydraulic shock (water hammer) arresting, frequency-conversion pump systems, and point-of-use residential booster applications.
The APT-3 is ideal for single-fixture lines, such as individual faucets, ice makers, washing machines, dishwashers, RO systems, and water heaters. It effectively absorbs pressure spikes, stabilizes system pressure, and reduces pump short-cycling, helping protect valves, piping, and connected equipment.
A: We strongly recommend having the APT-3 installed by a qualified plumber or technician for the following reasons:
Safety & Proper Setup: The APT-3 is a pressure vessel, and correct installation is critical. A professional will ensure:
System Compatibility: The tank must be correctly integrated with your booster pump, pressure switch, and piping system to ensure stable performance and avoid operational issues.
Warranty Protection: Installation by a non-professional may affect your product warranty coverage.
A professional technician can typically complete the installation, testing, and calibration within 2–3 hours.
A: The APT-3 is designed to be “maintenance-free”.
Simply check the pre-charge pressure once every 1–2 years using a standard tire pressure gauge. If the pressure is low, you can refill the Nitrogen by yourself or ask a plumber to do it.
Service Life: Under normal operating conditions (water temperature ≤ 99°C, pressure ≤ 10 bar), APT-3 designed to last over 10 years. Many of our customers have used it for over 15 years with normal operation.
Warranty: We offer a 3-year factory warranty covering manufacturing defects and material flaws.
Installation Tip: Ask your plumber to measure your water pressure during installation and recommend the most suitable system configuration.
