The ROT-14 is a high-capacity pressure tank (60 liters/14 gallons) for commercial reverse osmosis systems, large offices, and public drinking water setups, ensuring safe, pure, high-pressure water delivery.
It supports a maximum operating pressure of 7 bar (100 psi) and a temperature of 90 °C (194 °F). Factory pre-charged with 100% nitrogen to 0.5-0.7 bar (7-10 psi), it offers stable performance unaffected by temperature.

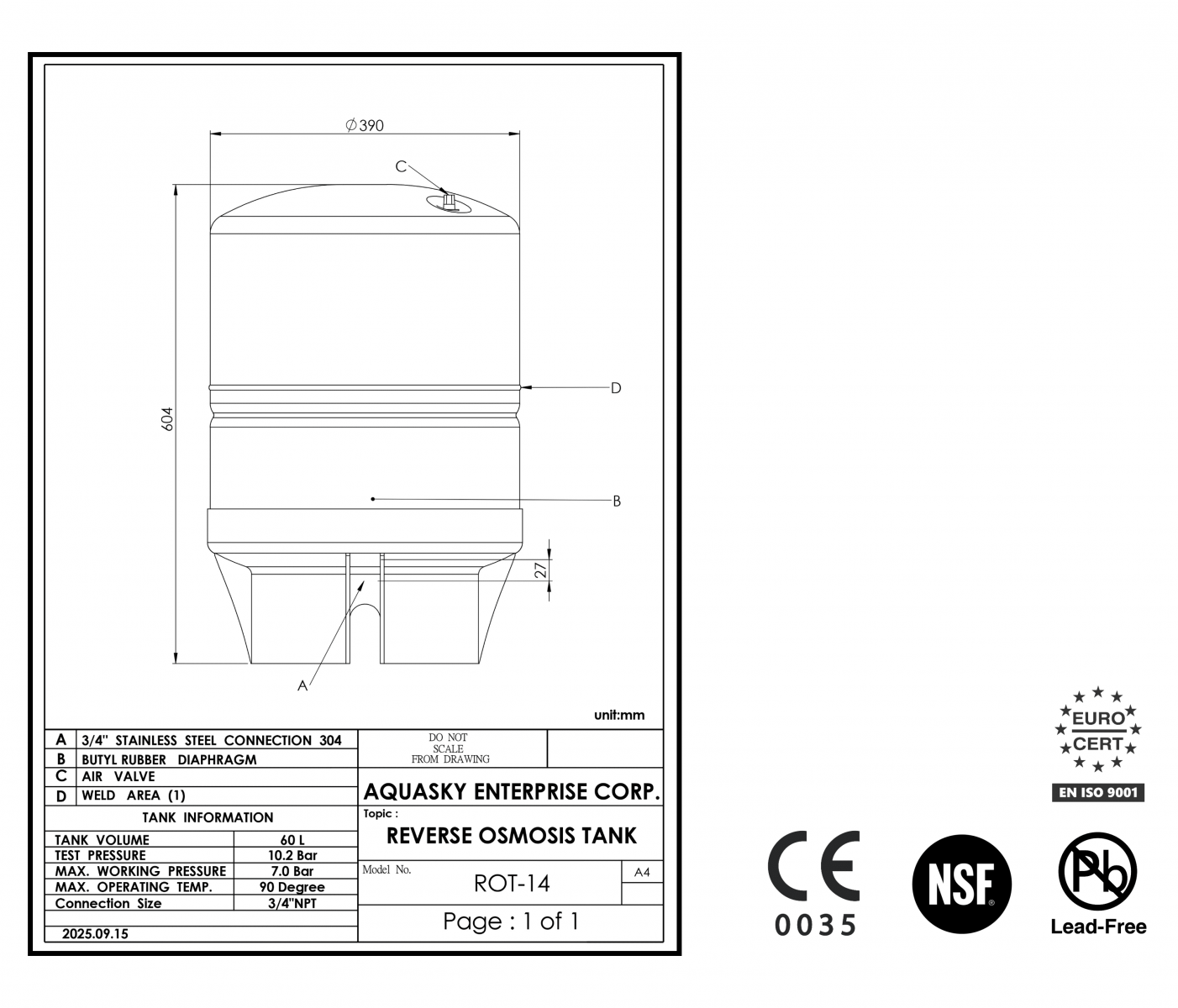

Measuring 39.0 cm (15.4 in) in diameter and 60.4 cm (23.8 in) in height, this stand-model tank includes a heavy-duty plastic base for sturdy support and water savings in commercial settings.
Product Overview
The ROT-14 is a 60-liter (14 gallon) diaphragm pressure tank engineered specifically as a high-capacity Commercial Reverse Osmosis (RO) drinking tank. Designed to process 60 liters per hour, the ROT-14—which is equivalent to the industry standard RO1070—is highly suitable for supplying clean water for up to 15 people. It securely stores a large volume of purified water and delivers it into the plumbing system with steady control, pressure.
ROT-14 is ideal for commercial applications. Its highly hygienic internal design separates the stored water from the compressed gas and completely prevents water from making direct contact with the internal metallic tank shell. Utilizing an FDA-approved polypropylene liner and a DIN 4807-compliant butyl rubber diaphragm, the ROT-14 ensures exceptionally safe operation, delivering cleaner, fresher, and better-tasting water while maintaining a tasteless water zone absolutely free of any rubber or plastic smells.
Manufactured with premium materials and holding top-tier certifications including NSF58, CE, and IAPMO, Aquasky RO tanks are produced in ISO 9001:2008 registered facilities to deliver a long service life, dependable performance, and the safest drinking-water compatibility on the market.
Certification
Specifications and Technical Data
| Parameter | Value |
| Model Number | ROT-14 |
| Total Tank Volume | 60 liters / 14 gallons |
| Diameter | 39.0 cm / 15.4 inch |
| Height | 60.4 cm / 23.8 inch |
| Net Weight (NW) | 8.9 kg / 19.6 lbs. |
| Gross Weight (GW) | 10.7 kg / 23.6 lbs. |
| Shipping Volume | 3.61 CUF |
| Operating Temperature | 90°C / 194°F |
| Factory Pre-charge | 0.5 - 0.7 bar | 7 - 10 psi |
| Max. Operating Pressure | 7 bar | 100 psi |
| Connection | 3/4” NPT Stainless Steel |
| Liner Material | Polypropylene (FDA grade) |
| Diaphragm Material | Butyl Rubber (DIN 4807 compliant) |
| Shell | Cold Rolled Carbon Steel |
| External Coating | Triple Coated Liquid Paint |
| Pre-charge Gas | 100% Nitrogen |
Key Features & Design Advantages
How the RO-PLUS Pressure Tank Works
ROT-14 stores supplemental water securely between the butyl rubber diaphragm and the polypropylene liner, while the nitrogen-filled air chamber maintains constant system pressure. When a drinking tap or coffee maker is activated, the compressed nitrogen pushes the purified water into the system at a controlled pressure.
This specialized design ensures stable performance, completely separates the water from the metal shell, and maintains a clean water zone that is completely free of rubber or plastic odors.
Key benefits
Typical Applications
Frequently Asked Question (FAQ)
Yes. The ROT-14 uses a high-grade polypropylene liner and a butyl diaphragm made with FDA-approved materials, which completely prevents the water from ever making contact with the steel tank shell.
This guarantees a tasteless water zone with no rubber or plastic smells, making it perfectly safe for clean drinking water in commercial and public applications. Furthermore, the stainless-steel connector is completely chemical-free and lead-free.
Yes, the ROT-14 is a commercial-grade 60-liter (14-gallon) tank capable of delivering 60 liters per hour. It is perfectly designed for large offices, commercial setups, and public drinking stations supporting up to 15 people.
No. The ROT-14 is designed to be entirely maintenance-free during its service life. We utilize a specialized brass cap with an internal O-ring that guarantees no air loss from the air vent.
Additionally, it is the only RO storage tank in the industry pre-charged with 100% Nitrogen, which naturally resists permeation and prevents pressure fluctuations caused by temperature changes.
Customized Colors & Packaging
We offer a wide range of customization options to match your exact needs - from custom colors to branded packaging and logo design.
Watch our video to explore the possibilities and see how we help your products stand out in the market.
Downloads & Certification Links
Detailed product information and data
Collection of all relevant product certifications.
