The ROT-6 is a high-capacity, 24L (6.0 gal) steel water storage tank for reverse osmosis systems, delivering safe, pressurized water for large groups.
It has a maximum operating pressure of 7 bar (100 psi) and a temperature of 90 °C (194 °F). Factory pre-charged with 100% nitrogen to 0.5-0.7 bar (7-10 psi) for stable performance.
Measuring 29.0 cm (11.4 in) in diameter and 39.3 cm (15.5 in) in height, this stand-model tank includes a reliable plastic base, offering a safe, energy-saving, and easy-to-install solution for high-demand settings.
Product Overview
The ROT-6 is a 24-liter (6.0 gallon) diaphragm pressure tank engineered for high-capacity Reverse Osmosis (RO) systems. Built with a durable steel shell, it is sized to supply clean water for up to 6 people, making it ideal for large families and busy offices. The system securely stores purified water and delivers it with robust pressure, ensuring high performance and energy savings.
Perfect for residential and commercial use, the ROT-6 features a hygienic design that separates water from compressed gas and prevents contact with the steel shell.
Utilizing an FDA-approved polypropylene liner and a DIN 4807-compliant butyl diaphragm, it delivers fresh, tasteless water free of rubber or plastic odors. Manufactured with premium materials and holding NSF58, CE, and IAPMO certifications, Aquasky tanks ensure a long service life and the safest drinking water compatibility available.
Certification

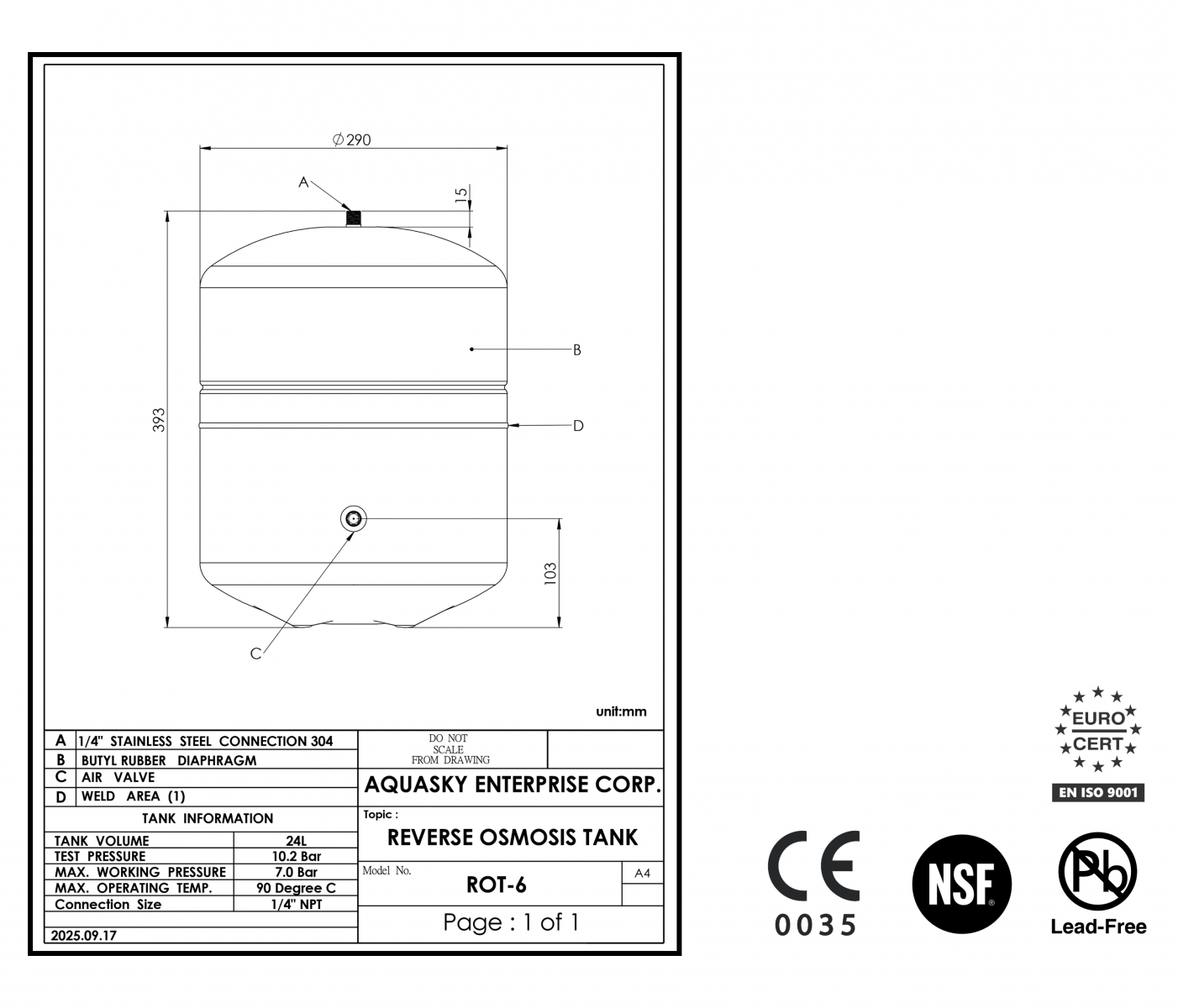

Specifications and Technical Data
| Parameter | Value |
| Model Number | ROT-6 |
| Total Tank Volume | 24 liters / 6.0 gallons |
| Diameter | 29.0 cm / 11.4 inch |
| Height | 39.3 cm / 15.5 inch |
| Net Weight (NW) | 4.0 kg / 8.8 lbs. |
| Gross Weight (GW) | 4.5 kg / 9.9 lbs. |
| Shipping Volume | 1.42 CUF |
| Operating Temperature | 90°C / 194°F |
| Factory Pre-charge | 0.5 - 0.7 bar | 7 - 10 psi |
| Max. Operating Pressure | 7 bar | 100 psi |
| Connection | 1/4” NPT Stainless Steel |
| Liner Material | Polypropylene (FDA grade) |
| Diaphragm Material | Butyl Rubber (DIN 4807 compliant) |
| Shell | Cold Rolled Carbon Steel |
| External Coating | Triple Coated Liquid Paint |
| Pre-charge Gas | 100% Nitrogen |
Key Features & Design Advantages
How the RO-PLUS Pressure Tank Works
ROT-6 stores supplemental water securely between the butyl rubber diaphragm and the polypropylene liner, while the nitrogen-filled air chamber maintains constant system pressure. When a drinking tap or coffee maker is activated, the compressed nitrogen pushes the purified water into the system at a controlled pressure.
This specialized design ensures stable performance, completely separates the water from the metal shell, and maintains a clean water zone that is completely free of rubber or plastic odors.
Key benefits
Typical Applications
Frequently Asked Question (FAQ)
Yes. The ROT-6 uses a high-grade polypropylene liner and a butyl diaphragm made with FDA-approved materials, which completely prevents the water from ever making contact with the steel tank shell.
This guarantees a tasteless water zone with no rubber or plastic smells, making it perfectly safe for clean drinking water. Furthermore, the stainless steel connector is completely chemical-free and lead-free.
Yes, the 24-liter (6.0-gallon) ROT-6 is engineered specifically for large family kitchens and office environments. It safely supports the drinking water needs of up to 6 people while offering excellent energy savings.
AQUASKY invented the leak-safe technology applied to the stainless connector 18 years ago, setting the benchmark for drinking water tanks. Manufactured in an ISO 9001:2008 registered facility and holding top-tier certifications like NSF58 and CE, it is recognized as one of the safest pressure vessels in the market.
